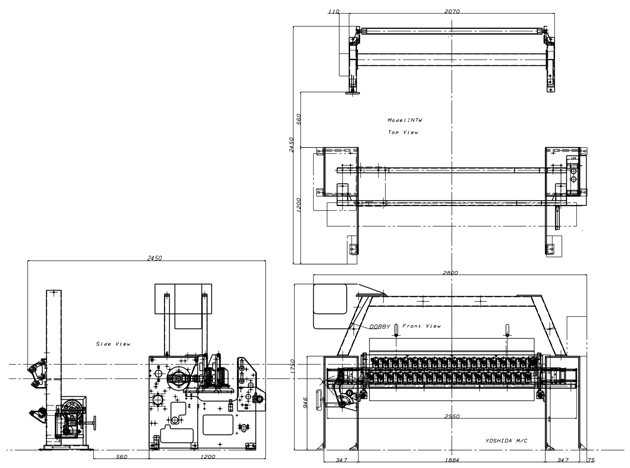

消極ドビー搭載仕様

Specification of loom with negative dobby

NTW

NOS. OF TAPE

WEAVING WIDTH

BOBBIN SIZE(mm)

32

Max. 25mm

Dia.30 × 50L

27

Max. 35mm

Dia.30 × 60L

22

Max. 50mm

Dia.30 × 80L

16

Max. 70mm

Dia.30 × 90L

11

Max. 90mm

Dia.30 × 100L

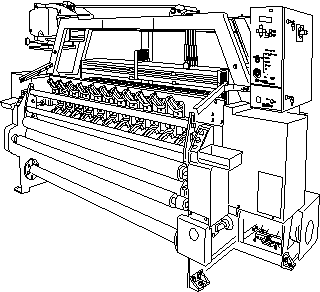

NHS

Type

NHS15

NHS17

NHS20

NHS27

Nos of Tape

15

17

20

27

Weaving Width

85mm

70mm

60mm

40mm

Deck

3

3

3

3

Weft Color

1

1

1

1

Bobbin Length

90mm

70mm

70mm

63mm

Batten Width

2,980mm

2,840mm

2,840mm

2,660mm
