Shuttle

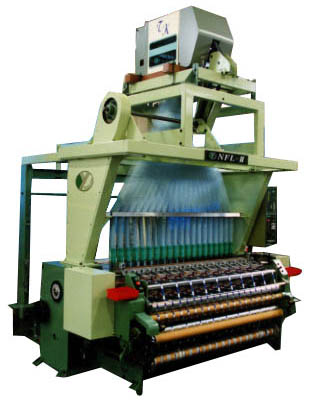

Loom Meets a Newest Technology. Epuipped with a new system to develop our future Woven Label & Fashion Ribbon industry. We ,Yoshida Machinery have been sear- ching for the best way in weaving high quality labeIs with high efficiency . Now ,we realize it ! Our NFL2 Shuttle Type Label Weaving Loom is the answer. You will enjoy the best quality of w- oven labeIs in the worId.
|
||
| TYPE | G21A-3-4 | G25A-3-4 | G27A-3-4 | G28A-3-4 | |
| NOS. OF TAPE | 21 | 25 | 27 | 28 | |
| WEAVING WIDTH | Max. 60mm | Max. 50mm | Max. 38mm | Max. 33mm | |
| NOS. OF DECK | 3 decks | ||||
| NOS. OF COLOR | 4 colors | ||||
| BOBBIN SIZE | 1 | Dia.25 × 70L | |||
| 2 | Dia.25 × 70L | ||||
| 3-4 | Dia.16 × 60L | ||||
| LET OFF MOTION | Tension Rollor System, Single Positive Drive,
of Double Positive Drive (Option) |
| TAKE UP MOTION | Friction Roller Indirect Take Up |
| FILLING MOTION | Slide Hook Shnttle System |
| MOTOR | Brake Moter 3 phase 1.5 kw 4 Pole |
| SPEED CHANGE | Change SPEED of Inverter (Option) |
| SHEDDING SYSTEM | Electronic Jacquard TK series |
| WARP STOP MOTION | No Pin Dropper (Optical Sensor) |
| DETECTOR FOR EMPTY BOBBIN |
Pre-Set Counter, Optical Sensor (Option) |
| COUNTER | Pre-Set Counter |
| ELECTRICITY | 3 Phase 200V, 220V, 380V |
| MEASUREMENT | 2,800mm (W) × 2,600mm (L) × 3,600mm (H) |
| WEIGHT | About 1,600 kg |
| TYPE | G28D-3-5 | G30A-3-4 | G33B-3-4 | G36C-3-3 | |
| NOS. OF TAPE | 28 | 30 | 33 | 36 | |
| WEAVING WIDTH | Max. 33mm | Max. 25mm | Max. 25mm | Max. 18mm | |
| NOS. OF DECK | 3 decks | ||||
| NOS. OF COLOR | 5 colors | 4 colors | 3 colors | ||
| BOBBIN SIZE | 1 | Dia.20 × 70L | Dia.25 × 70L | Dia.25 × 60L | |
| 2 | Dia.20 × 70L | Dia.25 × 70L | Dia.25 × 60L | ||
| 3-5 | Dia.16 × 60L | Dia.16 × 60L | Dia.16 × 60L | ||
