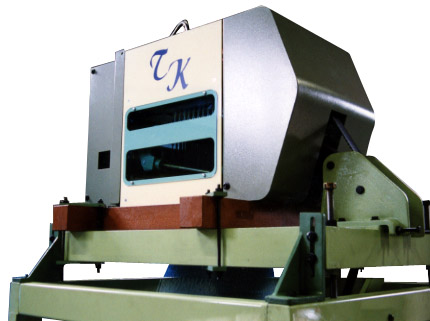

Electric Jacquard TK Series Epuipped with a new system to develop our future Woven Label & Fashion Ribbon industry. TK series fully computerized with Electrnonic Jacquard Hi-Speed Weaving System (150 R.P.M ~ ), Electromagnet Hook Selection System, Optical Sensor (Detector of Empty Bobbin & Warp Yarn Breakage) and Color Capacity (Maximan 5 colors includeng ground color).
|
| TYPE | TK-2 | TK-3 | TK-4 | TK-6 |
| NOS OF HOOK | 216 Hooks | 324 Hooks | 432 Hooks | 624 Hooks |
| HOOK ARRANGEMENT | 18*12 | 18*18 | 24*18 | 26*24 |
| SHEDDING RANGE | 50 - 120 mm | |||
| ADAPTABLE DATA |
CGS (Multiple, Single) , DOS
|
|||
| RECORD MEDIUM | 3.5 inch Floppy Disk (1MB CGS FORMAT, 1.44MG DOS FORMAT) | |||
| ELECTRIC COMSUMPTION | 300 W | 500 W | 600 W | 900 W |
| ELECTRICITY | 200V-Single Phase 50/60HZ | |||
| M/C DIMENTION LENGTH (mm) WIDTH (mm) HEIGHT (mm) |
480 1,100 740 |
480 1,100 740 |
480 1,100 740 |
590 1,250 740 |
| TOTAL WEIGHT | 120 kg | 140 kg | 150 kg | 180 kg |
